Montero



ALL-TERRAIN CONFIDENCE

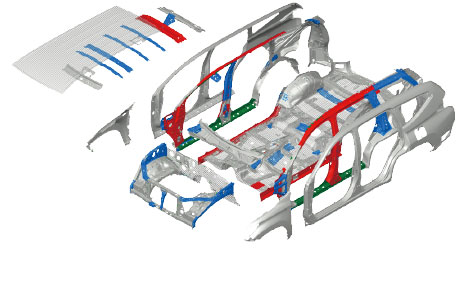

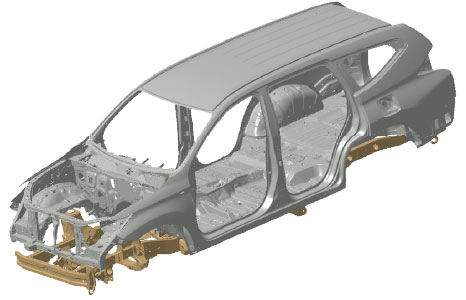

Built for maximum stability and traction, the rugged frame and aerodynamically contoured body contribute to solid handling and stable highway performance. Reliable 4WD traction combines with an advanced suspension to keep you in touch with surface conditions so you stay in firm control.

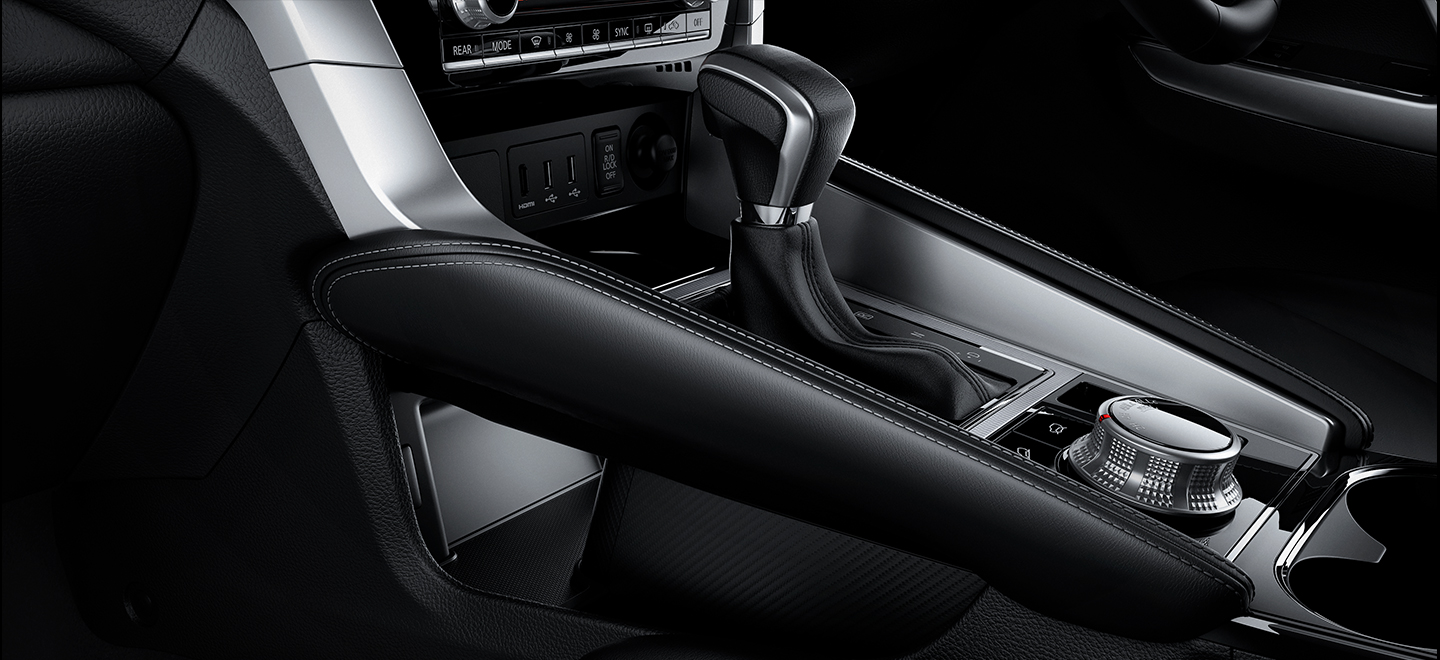

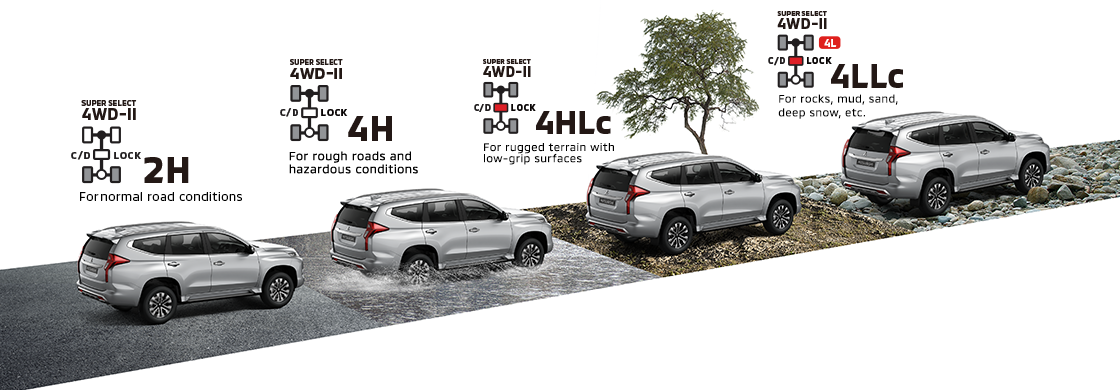

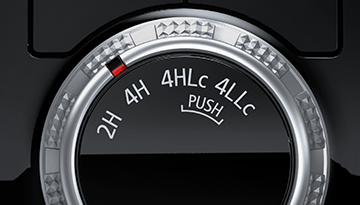

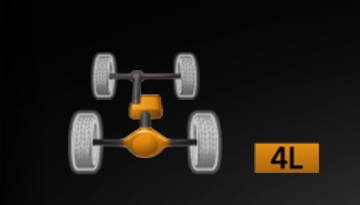

Using the drive mode selector dial, you can switch between 2WD (2H) and 4WD (4H, 4HLc, 4LLc) .When the going gets rough, lock the center differential by entering the 4HLc setting for rugged terrain or the 4LLc setting for inclines, mud and snow.

Note: Super Select 4WD-II lets you shift between 2H, 4H and 4HLc modes at speeds up to 100km/h. Vehicle must be stopped when switching between 4HLc and 4LLc. Please see the owner's manual for additional information.

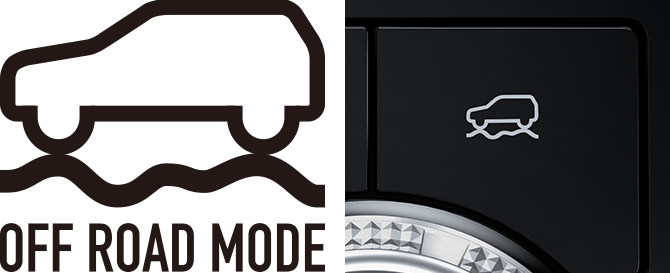

OFF ROAD MODE (4WD models only)

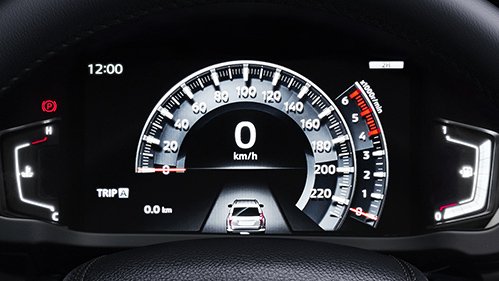

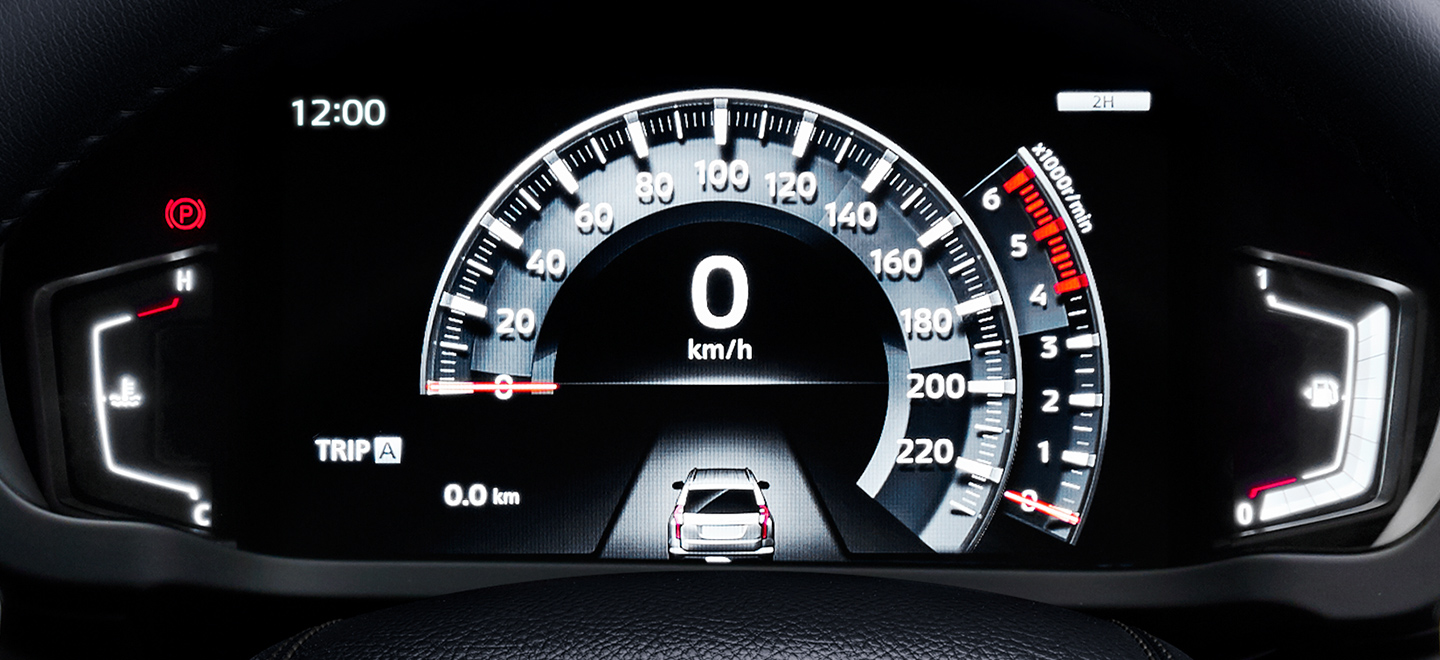

Improve traction when driving off road by entering the GRAVEL, MUD/SNOW, SAND or ROCK* setting. Simply press the OFF ROAD MODE selector until the appropriate mode appears in the multi-information display and 8 inch color LCD meter. Engine output, transmission settings and braking adjust accordingly to optimize performance.

Note: OFF ROAD MODE is only available in the 4HLc and 4LLc settings. *The ROCK setting is only available in the 4HLc and 4LLc settings.

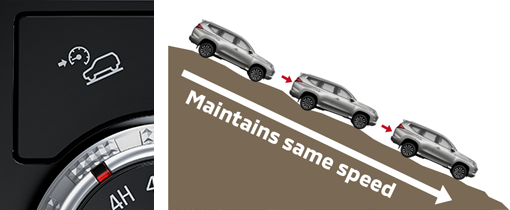

Hill Descent Control [HDC](8A/T models only)



Pressing the HDC mode selector activates the HDC, which automatically applies the brakes to maintain your current speed when traveling downhill. This lets you concentrate on steering and travel downhill with greater safety without having to manually apply the brakes. HDC can be activated at 2 - 20km/h.

Note: OFF ROAD MODE is only available in the 4HLc and 4LLc settings. *The ROCK setting is only available in the 4HLc and 4LLc settings.



Rear differential lock



Locking the rear differential minimizes differences in rotation between the rear wheels to ensure robust traction even on sand, mud and rocky surfaces.

Note: Rear differential lock is available when switching between 4HLc and 4LLc modes. Vehicle must be stopped in rear differential lock switching.

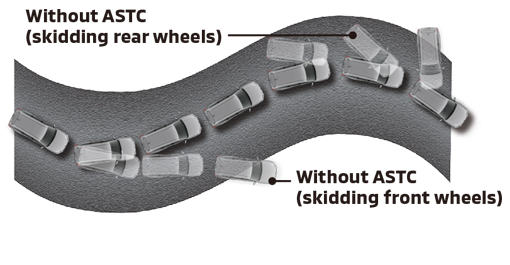

Active Stability & Traction Control [ASTC]



Active Stability & Traction Control independently regulates braking force to the wheels during cornering to help maintain excellent vehicle stability when needed. It also optimizes traction to prevent loss of torque whenever wheel spin is detected by controlling engine output and applying brake force to the spinning wheels.

Note:Note: The control capabilities of ASTC are supplemental only. Please drive safely and never rely solely on these functions while driving. Be sure to use the same specified type and size of tires on all 4 wheels. Do not install any aftermarket limited slip differential on your vehicle. Please see the owner's manual for additional information.

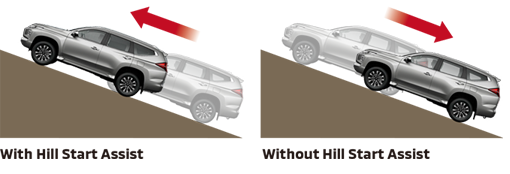

Hill Start Assist [HSA]



When starting on a steep slope, HSA helps prevent you from rolling backwards while you release the brake by maintaining the braking force for up to two seconds until the accelerator is applied.

Note: Hill Start Assist [HSA] is not a substitute for safe driving. Never rely solely on this function while driving on steep roads. Your vehicle may move backwards if the brake pedal is heavily loaded, or if the road is very steep or slippery. This function is not designed to keep the vehicle stopped in place on uphill slopes for more than 2 seconds. Do not rely on this function to maintain a stopped position as an alternative to depressing the brake pedal. Please see the owner's manual for additional information.

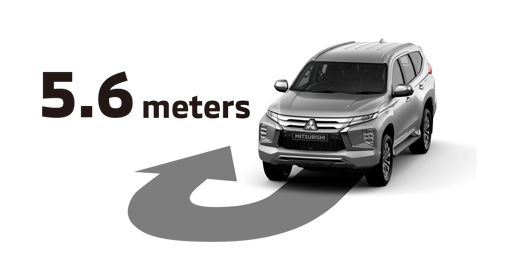

Class-leading 5.6m turning radius



The turning radius is surprisingly small for a vehicle of this size, making it especially easy to park and maneuver.

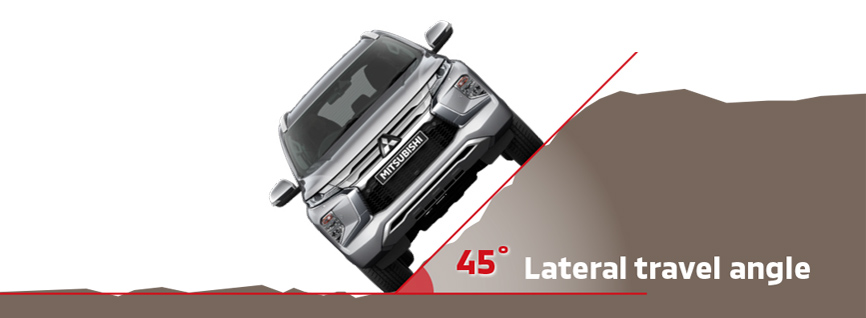

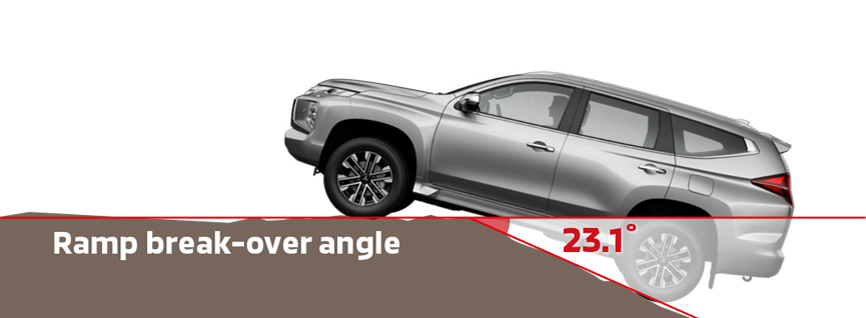

All-terrain confidence



Because challenges come in all shapes and sizes, this model is designed to climb up, over, around and through the toughest terrain.



*1 30° approach angle is only applicable to models without optional accessories
*2 24.6° departure angle when 265/70R16 tires are mounted
